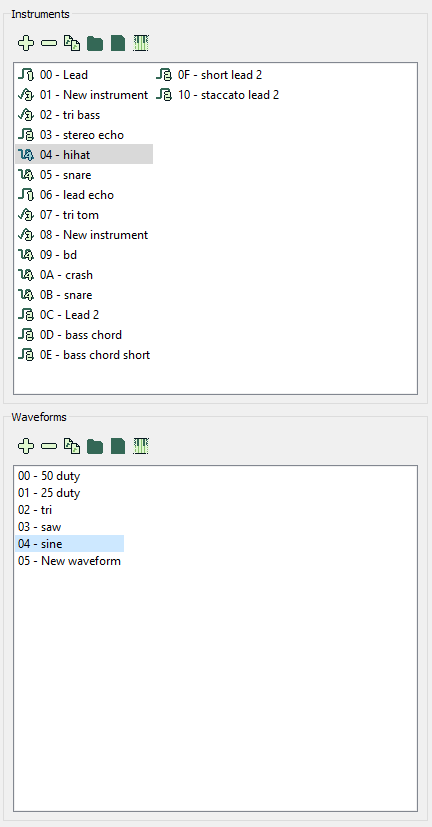

The instruments/waveforms panel

This panel shows all of your instruments and waveforms contained in the current module. It is located to the right of the pattern editor.

You can have up to 64 instruments and 64 waveforms in each module. Each item can be referenced by its 6-bit ID. For instruments this ID is used in the instrument column in the pattern editor. For waveforms this ID is used as a parameter for the Exx effect.

When an item is selected the instrument/waveform editor will switch to that item. You can also double-click an item to open the editor.

When an instrument is selected, the pattern editor will automatically insert its ID into the instrument column when entering notes. To prevent this from happening, deselect the instrument by clicking on it while holding the CTRL key.

Toolbar

The toolbar contains actions for adding/removing instruments or waveforms. Note that all actions in this toolbar permanently modify the module and CANNOT be undone.

Add

Adds an instrument/waveform to the module. The item uses the lowest available ID.

Remove

Removes the selected item from the module.

Duplicate

Makes a copy of the selected item. Like Add, the copied item uses the lowest available ID.

Import

This feature is currently not available.

Export

This feature is currently not available.

Edit

Opens the editor for the selected item.
